Model : 034B

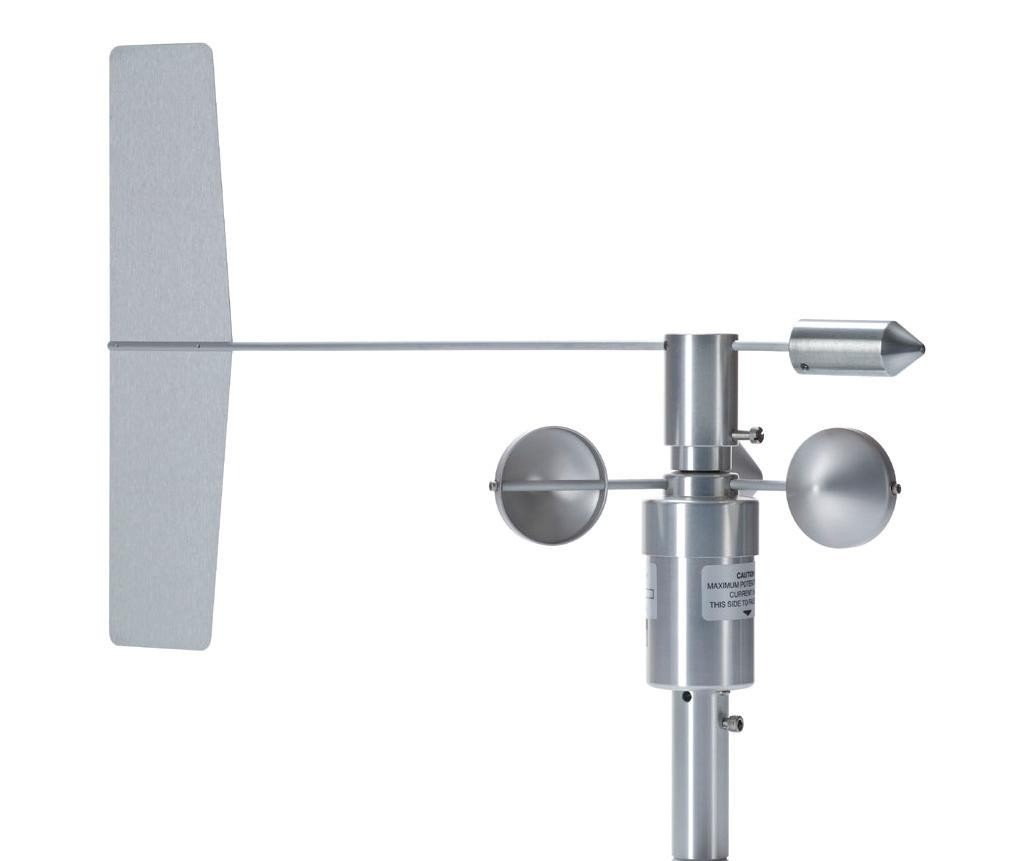

The 034B Wind Sensor combines wind speed and direction measurements in a single sensing
unit. It installs in minutes and provides accurate, long-term, continuous monitoring in hostile
environments. The sensor uses a quick-connect sensor cable which may extend hundreds of
feet without affecting measurement performance.

SPESIFIKASI:

Wind Speed
Range: 0 - 167 mph ( 0 - 75 m/ s)
Starting Threshold: 0.9 mph ( 0.4 m/ s)
Accuracy 22.7 mph: ± 1.1% of true
Wind Direction
Range: Mechanical: 0° - 360°
Electrical: 0 - 356°
Starting Threshold: 0.9 mph ( 0.4 m/ s)
Accuracy: ± 4°
Damping Ratio: .25 standard ( .4 to .6 optional)
Resolution: < 0.5°
TEMPERATURE RANGE
-30° C to + 70° C ( -22° F to + 158° F) Minimal icing conditions
Output Signal
Wind Speed: Pulsed contact closure
Wind Direction: Potentiometer output ( 0 – 10 K

Physical Characteristics
Sensor Weight: 1 lb 12.5 oz ( 0.81 kg)
Finish: Clear anodized aluminum
CABLE & MOUNTING
PN 3013 Cable Assembly; specify length in feet or meters
Mounting: PN 2954 Mounting & Alignment Adapter
Mounting with the alignment adapter ( PN 2954) maintains alignment even if the sensor is removed for maintenance.
The alignment adapter mounts the 034B to1Ý diameter tubing or pipe. PN 7156 is a horizontal sensor mounting arm.
Contact factory for special mounting applications.
Specifications are subject to change at any time.
